Lasco 9854-020

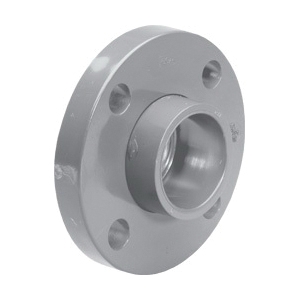

SCH 80 Class 150 CPVC Van Stone Style Flange, 2 in, Slip

  • Manufacturers: LASCO Fittings
  • Brand Name: Lasco
  • PN: 9854-020
  • MPN: 9854-020
  • UPC: 025528185022
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bolt Circle Diameter      :      4-3/4 in
Bolt Hole Diameter      :      5/8 in
Color      :      Light Gray
Connection Size      :      2 in
Connection Type      :      Slip
Item Name      :      Flange
Length Through Hub      :      1-11/16 in
Material Specifications      :      ASTM D1784 Type IV, Grade I Cell Classification 23447
Material      :      CPVC
Method of Manufacturer      :      Injection Molded
Number of Bolts      :      4
Outside Diameter      :      6 in
Pressure Class      :      Class 150
Pressure Rating      :      150 psi
Schedule      :      SCH 80
Temperature Rating      :      200 deg F
Thickness      :      13/16 in
Type      :      Van Stone Style

Standards/Certifications: NSF 14 and 61 certified, ANSI/ASME B16.5
