T&S Brass B-0305

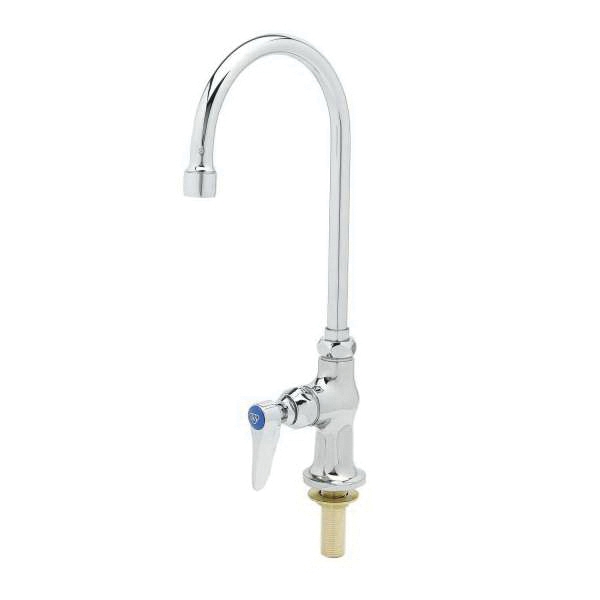

Brass 1-Handle Swivel/Rigid Gooseneck Pantry Swivel Base Faucet, Polished Chrome-Plated, 1.5 gpm

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: B-305
  • MPN: B-0305
  • UPC: 671262003544
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Cartridge Type      :      1/4 Eterna Compression
Deck to Aerator Height      :      9-9/16 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      NPSM
Faucet Mount      :      Deck
Finish      :      Polished Chrome-Plated
Flow Rate      :      5.59 gpm at 60 psi
Handle Material      :      Metal
Handle Type      :      Lever
Height      :      14 in
Item Name      :      Pantry Swivel Base Faucet
Material      :      Brass
Number of Handles      :      1
Number of Holes      :      1
Pressure Rating      :      20 - 125 psi
Spout Reach      :      5-3/4 in
Spout Type      :      Swivel/Rigid Gooseneck
Temperature Rating      :      40 - 140 deg F
Width      :      3-5/16 in
  • 1-hole single temperature deck mount faucet with polished chrome-plated brass body
  • 5-3/4 in swivel/rigid gooseneck
  • Lock washer included for rigid applications
  • Stream regulator outlet, series 1
  • 1/4-turn Eterna compression cartridges with spring check
  • Lever handle with color-coded indexes
  • 1/2 in NPT female eccentric inlets with 2 in flanges
  • Optional tailpiece and nut for 1/4 in MNPT connection
  • California proposition #65 warning
  • 1-year limited warranty

Standards/Certifications: ADA compliant, ANSI/ICC A117.1, ASME A112.18.1, BAA/ARRA, CSA B125.1, City of Los Angeles, Commonwealth of Massachusetts, ANSI/NSF 61 and 372 certified

  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12388_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12388_Tech.pdf
