PSC Approved Manufacturer B3100-14 PLN

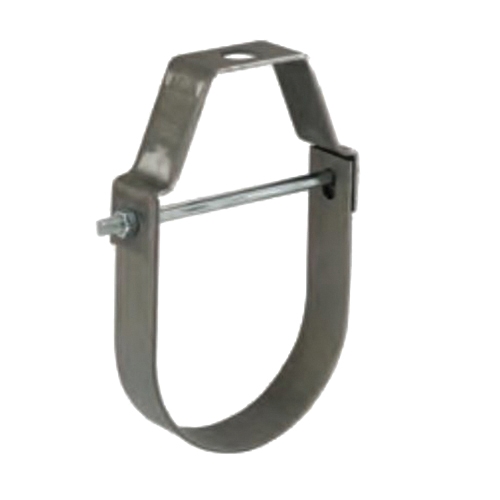

B3100 Black Plain Carbon Steel Standard Clevis Hanger, 14 in

  • Manufacturers: PSC Approved Manufacturer
  • Brand Name: PSC Approved Manufacturer
  • PN: B3100.14
  • MPN: B3100-14 PLN
  • UPC: 78101105090
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Adjustable Size      :      2-7/8 in
Color      :      Black
Finish      :      Plain
Item Name      :      Clevis Hanger
Length      :      19-3/8 in
Load Capacity      :      4200 lb
Material      :      Carbon Steel
Model      :      B3100
Nominal Size      :      14 in
Rod Size      :      1-8 in
Temperature Rating      :      650 deg F
Type      :      Standard
  • Recommended for the suspension of non-insulated pipe or insulated pipe with B3151 shield

Standards/Certifications: Federal specification WW-H-171E and A-A-1192A (type 1) and ANSI/MSS SP-69 and SP-58 (type 1) certified, cULus listed, FM, OSHPD approved
