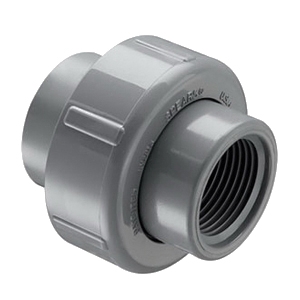

Spears 8059-030C
SCH 80 Gray CPVC Union with FKM O-ring, 3 in, Socket x FIPT
- Manufacturers: Spears Manufacturing
- Brand Name: Spears
- PN: 8059-030C
- MPN: 8059-030C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Color | : | Gray |
Connection Size | : | 3 in |
Connection Type | : | Socket x FIPT |
Item Name | : | Union with FKM O-ring |
Length | : | 3-25/32 in |
Material Specifications | : | ASTM D1784 Cell Classification of 23447, ASTM F439 |
Material | : | CPVC |
Method of Manufacturer | : | Injection Molded |
Pressure Rating | : | 235 psi at 73 deg F |
Schedule | : | SCH 80 |
Temperature Rating | : | 200 deg F |
Spears Schedule 80 CPVC fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure obtaining the very best CPVC fittings available.
Standards/Certifications: LPCB, NSF certified
Applications: For portable water applications
