AirGap International ET115-001

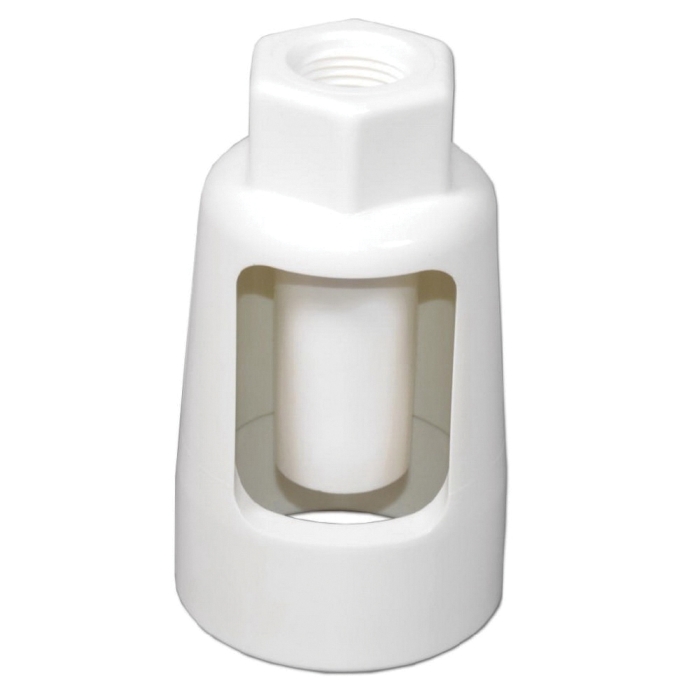

ET115 Multi-Purpose Air Gap, 1/2 x 1-1/2 in, FIPT x Hub

  • Manufacturers: AirGap International
  • Brand Name: AirGap International
  • PN: G-150
  • MPN: ET115-001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      FIPT x Hub
Diameter      :      2-3/4 in
Drain Connection Size      :      1/2 x 1-1/2 in
Height      :      4-1/4 in
Item Name      :      Air Gap
Series      :      ET115
Type      :      Multi-Purpose

The ET115 series universal water softener or water filter airgaps are designed to provide a convenient way to install an airgap into 1-1/2 in standpipe drain. This airgap can be connected using a rigid PVC pipes or flex tubing with adapters. The unique design provides a completely protected airgap without any possibility of water splashing out. The inlet accommodates 1/2 in treaded PVC pipes or adapters.

  • Provides easy connection to 1/2 in standpipe
  • Splash guard assures complete dry operation
  • Can be pressure fit or glued to a standpipe
  • Recommended usage up to 15 gpm
  • Legal to install in any state UPC listed, IPC and NSF tested

Standards/Certifications: IPC and NSF tested, UPC listed

Applications: For 1-1/2 in standpipe

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16276_Instal.pdf
