Schier 4025-001-01

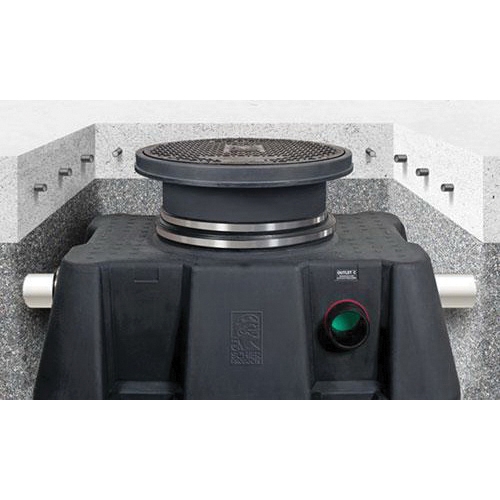

Great Basin Polyethylene High Capacity Grease Interceptor, 4 in, 50 gpm

  • Manufacturers: Schier Products
  • Brand Name: Schier
  • PN: GB-50
  • MPN: 4025-001-01
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      52 gal Liquid, 249 lb Grease, 12.5 gal Solid
Connection Size      :      4 in
Flow Rate      :      50 gpm
Height      :      28-1/2 in
Item Name      :      Grease Interceptor
Length      :      37 in
Material      :      Polyethylene
Sub Brand      :      Great Basin
Type      :      High Capacity
Width      :      28 in
  • 4 in plain end inlet/outlet
  • Maximum operating temperature of 150 deg F continuous
  • Built-in flow control
  • For gravity drainage applications only
  • Do not use for pressure applications
  • Cover placement allows full access to tank for proper maintenance
  • Vent not required unless per local code
  • Engineered inlet and outlet diffusers are removable to inspect/clean piping
  • Integral air relief/anti-siphon

Standards/Certifications: ASME A112.14.3, CSA B481.1, IAMPO listed

Applications: For indoor/outdoor

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6945_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6945_Spec.pdf
