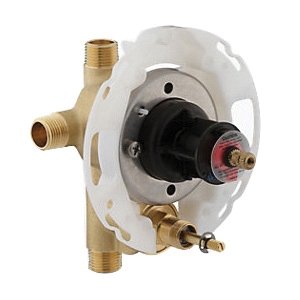

Kohler K-11748-K

Rite-Temp Brass Pressure-Balancing Valve with Push-Button Diverter, 1/2 in, NPT

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K11748K
  • MPN: K-11748-K
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      NPT
Item Name      :      Pressure-Balancing Valve with Push-Button Diverter
Length      :      5-3/4 in
Material      :      Brass
Pressure Rating      :      80 psi
Sub Brand      :      Rite-Temp
Temperature Rating      :      400 deg F
Width      :      5-3/4 in

This Rite-Temp pressure-balancing valve works behind the scenes to prevent scalding and thermal shock for optimal comfort. Additionally, the unit features a diaphragm design that virtually eliminates freeze-ups from contamination and water debris. When paired with compatible trim, this valve delivers a high-temperature limit stop and an optimal comfort zone, so you can set a maximum high and then find and maintain your desired water temperature.

  • Rite-Temp Pressure balancing diaphragm design
  • Pressure balancing mechanism of 1-piece diaphragm cartridge design for ease of maintenance
  • Mixing valve cycles from cold to hot
  • Integral diverter mechanism
  • High temperature limit setting for added safety
  • Less screwdriver stops
  • Limited lifetime warranty

Standards/Certifications: ASME A112.18.1, ASSE 1016, CSA B125.1, B125.16

Applications: For showerhead and handshower

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17619_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17619_Spec.pdf
