Kohler K-1123-RA-0
Send Print
  1. pin-int

Kohler K-1123-RA-0

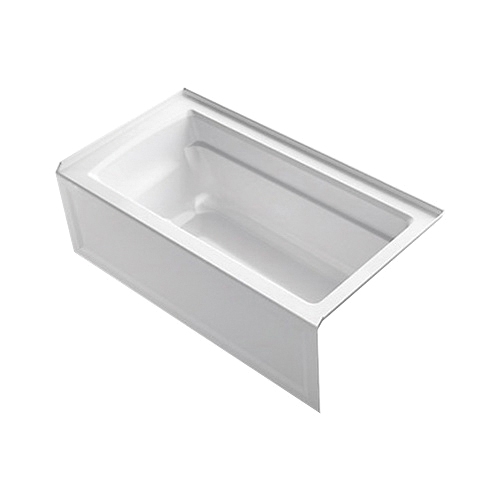

Archer Acrylic Right Drain 3-Wall Alcove Bathtub, 58 gal, 60 in L x 32 in W x 20-1/4 in H, White

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K1123RAWH
  • MPN: K-1123-RA-0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      58 gal
Color      :      White
Drain Location      :      Right
Drain Size      :      1-1/2 in
Height      :      20-1/4 in
Item Name      :      Bathtub
Length      :      60 in
Material      :      Acrylic
Mounting      :      3-Wall Alcove
Theme/Style      :      Archer
Width      :      32 in

Taking its design cues from traditional craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.

  • Comfort depth design offers a convenient 19 in step-over height while retaining the same depth as a standard 21 in bath
  • Molded lumbar support offers extra comfort while bathing
  • Slotted overflow allows for deep soaking
  • Integral apron
  • Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
  • Textured bottom surface
  • Co-ordinates with other products in the Archer collection
  • Lifetime limited warranty

Standards/Certifications: ADA compliant, ANSI/ICC A117.1, CSA B45.5, IAPMO Z124 listed

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17589_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17589_Spec.pdf
