Easyflex EFWC-034-SS-1060-18

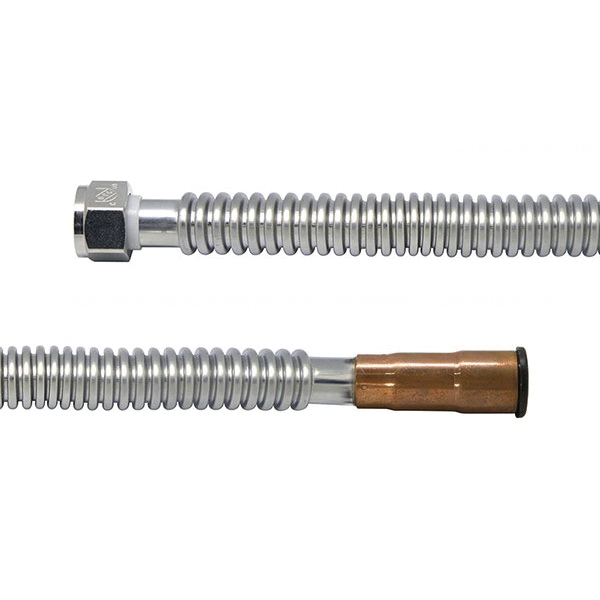

EFWC 304 Stainless Steel Flexible Water Heater Connector, 3/4 in, FIP x Sweat, 18 in L

  • Manufacturers: Easyflex
  • Brand Name: Easyflex
  • PN: EFWC-034-SS-1060-18
  • MPN: EFWC-034-SS-1060-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FIP x Sweat
Gasket Material      :      High-Quality EPDM
Item Name      :      Flexible Water Heater Connector
Length      :      18 in
Material      :      304 Stainless Steel
Minimum Bend Radius      :      2.5 in
Pressure Rating      :      20 - 125 psig
Series      :      EFWC
Temperature Rating      :      -40 to 180 deg F

With a stainless steel 304 tube, chrome-plated brass body, high quality EPDM gasket and dielectric sleeve, this connector is designed and engineered for high performance.

  • Maximum flow with engineered and optimized corrugation design
  • Built-in dielectric sleeve to prevent possible galvanic corrosion
  • 100% leak tested

Standards/Certifications: ASME A112.18.6-2002, CSA B125.3-05, cUPC, ANSI/NSF 61, IAPMO/cUPC listed, NSF 372 certified

Applications: For water heaters

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14852_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14852_Spec.pdf
