Elkay ELUH4020

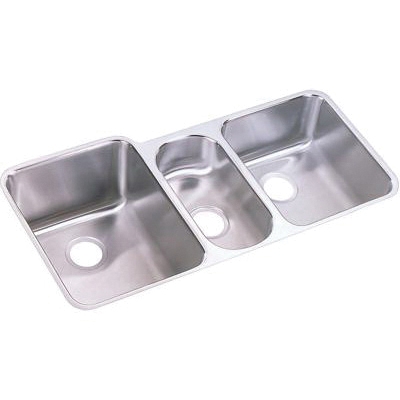

Lustertone Classic 18 ga 304 Stainless Steel Triple-Bowl Rectangular Undermount Sink, 40 in L x 20-1/2 in W x 9-7/8 in H, Rear Center Drain, Lustrous Satin

  • Manufacturers: Elkay
  • Brand Name: Elkay
  • PN: ELUH4020
  • MPN: ELUH4020
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Drain Location      :      Rear Center
Drain Size      :      3-1/2 in
Finish      :      Lustrous Satin
Gauge      :      18 ga
Height      :      9-7/8 in
Includes      :      1000001454 Cut-Out Template
Item Name      :      Sink
Length      :      40 in
Material      :      304 Stainless Steel
Minimum Cabinet Size      :      45 in
Mounting      :      Undermount
Number of Bowls      :      3
Shape      :      Rectangle
Sink Bowl Size (Right)      :      13-1/2 in L x 16 in W x 7-7/8 in H
Sink Bowl Size (Single or Left)      :      14 in L x 18 in W x 9-7/8 in H
Sink Size (Center)      :      7-1/2 in L x 15-3/4 in W x 5 in H
Sound Dampening      :      Yes
Theme/Style      :      Lustertone Classic
Width      :      20-1/2 in

An Elkay Lustertone Classic stainless steel sink looks as great on day 3000 as it does on day one. The rich uniform grain is scratch-resistant for heavy-duty use whether it's a kitchen sink or a prep bar laundry or commercial sink. Light scratches which occur with everyday use naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit.

  • Finish is scratch-resistant to heavy-duty use, deep scratches are repairable
  • Lustrous grain reflects light evenly for high shine
  • Undermount installation - sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
  • Highest-quality 18 ga thickness and type 304 stainless steel for lasting durability, performance and lustrous beauty
  • Quiet - sound deadening pads minimize sound and vibration for a quieter time at the sink
  • Offset drain placement provides more usable space on the bottom of the sink and in the cabinet below
  • Large capacity - straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes, easy-to-clean
  • Extra deep bowls - high-capacity bowls offer more room inside for stacking dishes, filling stockpots and handling large baking sheets and roasters
  • Sink drain opening measures 3-1/2 in
  • Limited lifetime warranty
  • Made in USA

Standards/Certifications: ASME A112.19.3, CSA B45.4, BAA compliant
