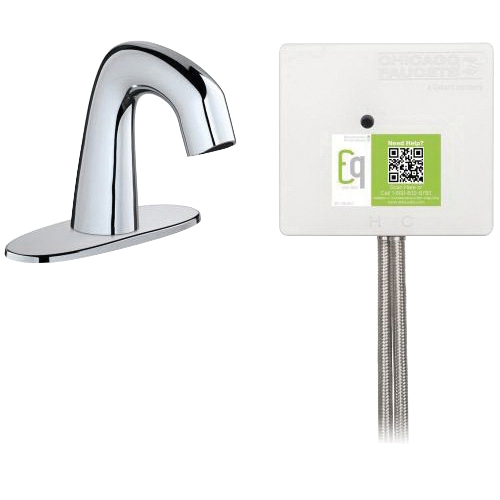

Chicago Faucet EQ-A12B-23ABCP

EQ Curved Fixed Infrared Touch Free Lavatory Faucet, Polished Chrome, 4 in Centers, 1 gpm

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet
  • PN: EQ-A12B-23ABCP
  • MPN: EQ-A12B-23ABCP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      1-1/2 in
Deck to Aerator Height      :      3-1/4 in
Dimension      :      5-3/4 in L x 6-1/2 in W x 6-1/8 in H
Faucet Center Size      :      4 in
Faucet Mount      :      Deck
Finish      :      Polished Chrome
Flow Rate      :      1 gpm
Handle Type      :      Electronic
Includes      :      Stainless Steel Braided Hose
Item Name      :      Lavatory Faucet
Number of Holes      :      1
Pressure Rating      :      20 - 125 psi
Run Time      :      20 s
Sensor Type      :      Infrared
Spout Reach      :      4-1/2 in
Spout Type      :      Fixed
Temperature Rating      :      39 - 80 deg F Cold, 100 - 180 deg F Hot
Theme/Style      :      EQ Curved
Type      :      Touch-Free
Valve Type      :      Thermostatic Mixing
  • EQ curved electronic integral spout assembly
  • Vandal-proof pressure compensating Softflo aerator
  • Dual supply for hot and cold water, stainless steel supply hoses included
  • Lifetime limited warranty

Standards/Certifications: ADA compliant, ANSI/ICC A117.1, ASME A112.18.1, ASSE 1070, CSA B125.1, ANSI/NSF 61-9 and 372 certified

Applications: For commercial

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14899_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14899_Spec.pdf
