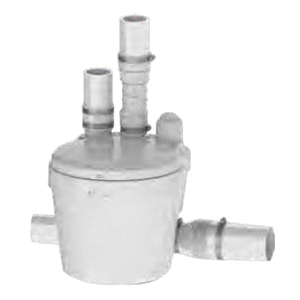

The saniswift drain pump is used to pump gray water away from a variety of fixtures in residential applications. The system is able to discharge the waste up to 14 ft vertical and/or 140 ft horizontal.

• Discharges the waste through either a 1 or 11/2 in rigid pipe
• A non-return valve is included on the discharge fitting assembly provided with the system
• Has been designed with a 1-1/2 in vent connection on the top of the lid
• All plumbing codes require connection to a vent system
• Either inlet located on top of the housing can be used for the vent or as an inlet
• Discharges gray water from a kitchen sink, shower, dishwasher, washing machine (indirect connection via laundry sink)
• The gray water will drain into the system via (3) 1-1/2 inlets, 2-low inlets (with built-in check valves) on either side of the housing and one on top of the enclosure

Standards/Certifications: CSA certified, IPC, NSPC listed

Applications: For residential

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13937_Cat.pdf
