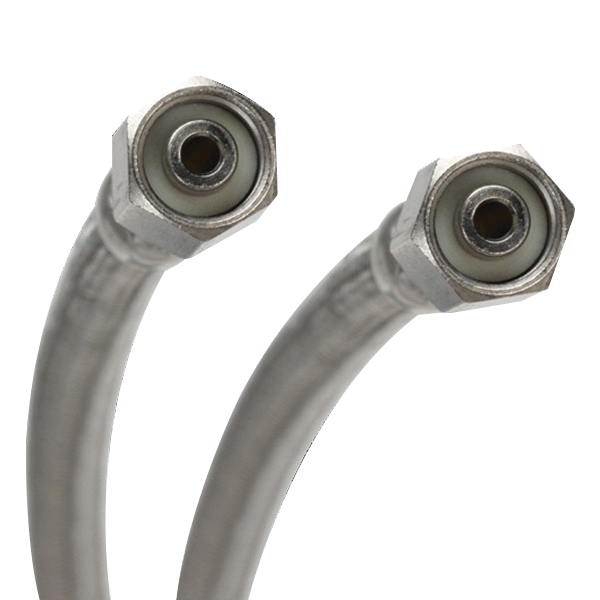

Fluidmaster 12IM72

304 Stainless Steel Braided Ice Maker Connector, 1/4 in, Compression, 72 in L

  • Manufacturers: Fluidmaster
  • Brand Name: Fluidmaster
  • PN: FLB12IM72
  • MPN: 12IM72
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      Compression
Flow Rate      :      1.88 - 3.39 gpm at 80 psi
Item Name      :      Braided Ice Maker Connector
Length      :      72 in
Material      :      304 Stainless Steel
Pressure Rating      :      125 psi
Temperature Rating      :      40 - 150 deg F
  • Exceptional flexibility for fast, easy installation
  • Won't kink or crease, even in the tightest of spaces
  • Heavy-duty brass hex nuts are easy-to-grip and nickel-plated for durability
  • Exceeds all code requirements for flexible water connectors
  • Santoprene internal hose

Standards/Certifications: ASME A112.18.6, CSA B125.6, IAPMO listed

Applications: For ice maker
