Fluidmaster B6W60K

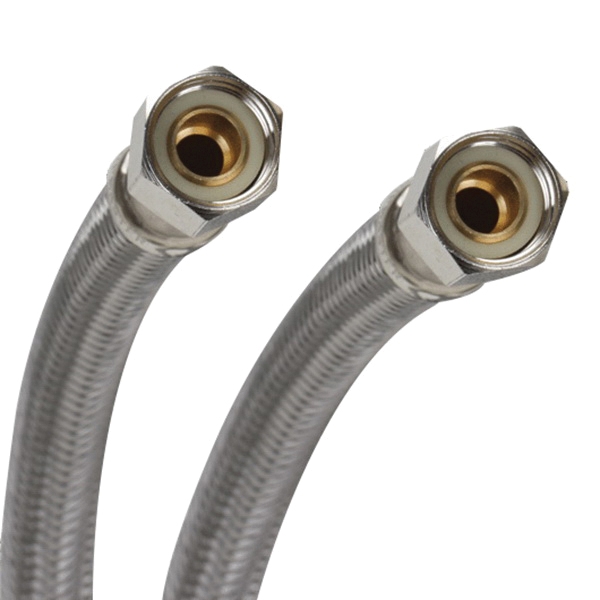

304 Stainless Steel Braided Dishwasher Connector with 3/8 in and 3/4 in Elbow, 3/8 in, Compression, 60 in L

  • Manufacturers: Fluidmaster
  • Brand Name: Fluidmaster
  • PN: FLB6W60
  • MPN: B6W60K
  • UPC: 039961371393
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/8 in
Connection Type      :      Compression
Elbow Adapter Material      :      Brass Alloy
Flow Rate      :      7.18 - 7.26 gpm at 80 psi
Internal Hose Material      :      PVC
Item Name      :      Braided Dishwasher Connector with 3/8 and 3/4 in Elbow
Length      :      60 in
Material      :      304 Stainless Steel
Pressure Rating      :      125 psi
Temperature Rating      :      40 - 150 deg F
  • Exceptional flexibility for fast, easy installation
  • Won't kink or crease, even in the tightest of spaces
  • Heavy-duty brass hex nuts are easy-to-grip and nickel-plated for durability
  • Exceeds all code requirements for flexible water connectors
  • 10-years warranty

Standards/Certifications: ASME A112.18.6, CSA B125.6, IAPMO listed, NSF 61-9 certified

Applications: For dishwasher
