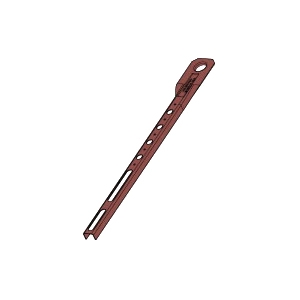

The Holdrite 114-C is a copper bonded steel bracket with 2 slots for securely mounting upright to the carrier unit. The top end has a single 1-1/8 in extruded hole for soldering 1 in copper pipe, as well as supporting the water pipe for the flush valve above the floor. Adjust the flush valve 4-1/2 in from the carrier center and 14 in above the top fixture mounting bolt. This installation typically places the flush valve at 11-1/2 in above the fixture, When soldering, heat the pipe, not the bracket.

• Copper bonded, heavy-gauge steel bracket mounts directly to 4-bolt toilet carrier and positions flush valve at height of 11-1/2 in above toilet
• For 1 in flush valve support
• Allows for rough-in prior to framing being erected
• 4-1/2 in offset center line rough-in

Standards/Certifications: UPC, IPC, IAMPO listed

Applications: For flush valve support

• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2692_Spec.pdf
