Matco-Norca 771S03

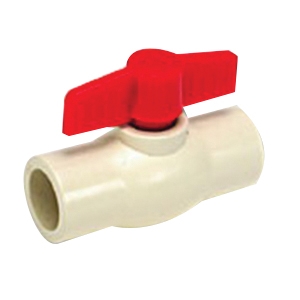

771 CPVC Ball Valve, 1/2 in CTS, Solvent

  • Manufacturers: Matco-Norca
  • Brand Name: Matco-Norca
  • PN: CTS2520.12
  • MPN: 771S03
  • UPC: 082647771031
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      CPVC
Connection Size      :      1/2 in CTS
Connection Type      :      Solvent
Dimension      :      2.68 in L
Item Name      :      Ball Valve
Material Specifications      :      ASTM D2846
Material      :      CPVC
Model      :      771
Operator Type      :      ABS White Handle
Pressure Rating      :      100 psi at 180 deg F
Seat Material      :      PTFE
  • PTFE seat seals
  • EPDM O-ring, zinc-plated steel bolt, ABS cap

Standards/Certifications: ISO 9002 standard, NSF certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4251_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9856_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9856_Tech.pdf
