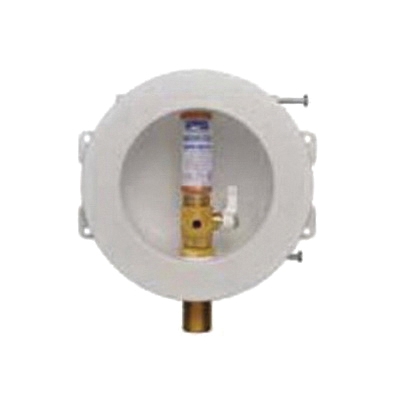

Water-Tite 88372

Plastic Round Mini Ice Maker Outlet Box, 1/2 in Sweat, 10/Case

  • Manufacturers: IPS Corporation
  • Brand Name: Water-Tite
  • PN: IPS88372
  • MPN: 88372
  • UPC: 012181883723
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      Sweat
Height      :      2-3/8 in
Includes      :      Preloaded Mounting Nails, Lead-Free Brass Quarter-Turn Hammer Arrester Valve
Item Name      :      Mini Ice Maker Outlet Box
Length      :      6-1/8 in
Material      :      Plastic
Type      :      Round
Width      :      6-1/8 in
  • Valves feature white handle
  • Pre-loaded nails provide strong rigid mount
  • Nails are reversible and box can be mounted to left or right-hand stud bay
  • Round trim ring faceplate accommodates up to 1 in drywall molded-in side support brackets supports box to stud bay
  • Rough opening: 4-3/4 in Dia x 2-3/8 in D
  • 6-1/8 in Dia round faceplate
  • Brass 1/4-turn valve installed

Standards/Certifications: ASME A112.18.1, ASSE 1010, NSF 61 Annex G certified
