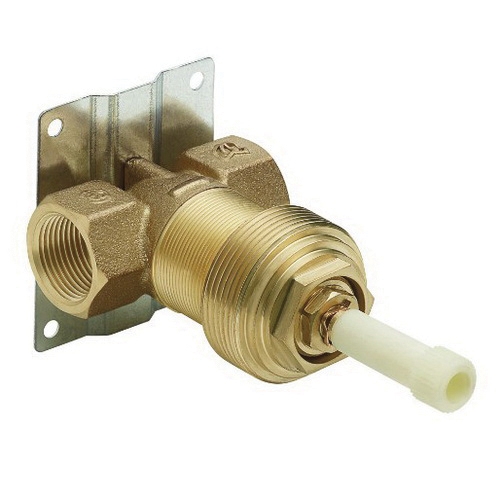

Moen S3600

Brass Volume Control Valve, 3/4 in IPS

  • Manufacturers: MOEN
  • Brand Name: Moen
  • PN: MO3600
  • MPN: S3600
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      IPS
Flow Rate      :      13 gpm at 60 psi
Item Name      :      Volume Control Valve
Material      :      Brass

From finishes that are guaranteed to last a lifetime, to faucets that perfectly balance your water pressure, Moen sets the standard for exceptional beauty and reliable, innovative design. Bring elegance to your home with premium kitchen faucet selections from Moen. From the sophistication of period traditional to the streamlined refinement of minimalist contemporary, you'll find a host of amazing ways to be expressive in the kitchen.

  • 3/4 in volume control valve allows optimum water-flow in homes with 1/2 or 3/4 in plumbing
  • Built-on the Moen M-PACT common valve system, allowing you to update the faucet-style in the future without replacing any plumbing
  • Flow lever operates counterclockwise through a 90 deg arc with off at 6 o'clock and maximum flow at the 3 o'clock position, shut-off in clockwise direction
  • Ceramic disc cartridge design
  • Volume control valve must be installed with the arrow pointing in the water flow direction

Standards/Certifications: ASME A112.18.1, ASSE 1016, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19979_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19979_Spec.pdf
