Milwaukee Valve 1174 - 212

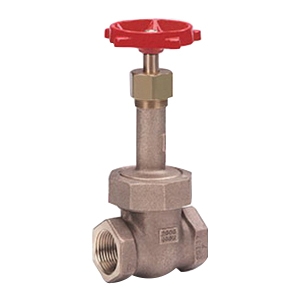

1174 Bronze Rising Stem Gate Valve, 2-1/2 in, FNPT

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MV1174.212
  • MPN: 1174 - 212
  • UPC: 697988181687
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2-1/2 in
Connection Type      :      FNPT
Dimension      :      4.63 in L
Flow Co-Efficient      :      54 Cv
Item Name      :      Gate Valve
Material Specifications      :      ASTM B61, ASTM A240, TY304, ASTM B124, C37700
Material      :      Bronze
Model      :      1174
Operator Type      :      Malleable Iron Handwheel
Packaging Material      :      Graphite
Pressure Rating      :      200 psi WSP, 400 psi WOG Non-Shock
Seat Material      :      Stainless Steel
Stem Material      :      Bronze
Type      :      Rising Stem
  • Bronze solid wedge disc
  • Bronze union bonnet
  • Bronze union bonnet nut, stainless steel seat ring, brass gland, packing nut, handwheel nut and aluminum identification plate
  • Not intended for use in potable water

Standards/Certifications: MSS SP-80, type 2 certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20443_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20443_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20426_Spec.pdf
