PHD SB030EG

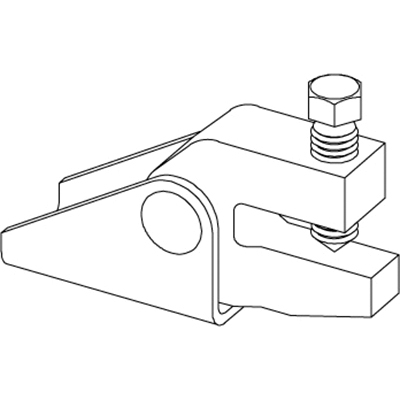

030 Electrogalvanized Ductile Iron and Carbon Steel C-Clamp Structural Attachment, Up to 8 in

  • Manufacturers: PHD Manufacturing
  • Brand Name: PHD
  • PN: PHD030
  • MPN: SB030EG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Finish      :      Electrogalvanized
Item Name      :      C-Clamp Structural Attachment
Material      :      Ductile Iron and Carbon Steel
Nominal Size      :      Up to 8 in
Series      :      030
  • Designed for bracing pipe against sway and seismic disturbances, universal swivel design allows for attachment at any surface angle combined with concentric loading
  • Structure attachment fitting designed to use 1 to 2 in SCH 40 pipe, structural steel and PHD 12 gauge strut channel (1001 and 1201) as sway bracing elements
  • No bracing member thicker than 3/8 in can be used in conjunction with this product
  • Utilize the figure 030 with a PHD manufacturing pipe attachment fitting and a bracing element to form a complete sway brace assembly
  • Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturers installation instructions
  • 1/2 in mounting hole

Standards/Certifications: cULus listed, FM approved, NFPA listed
