Kohler 737-K-NA

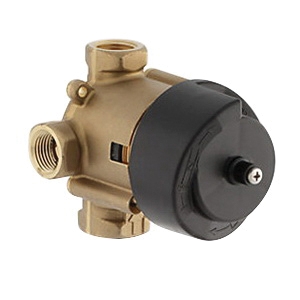

MasterShower Forged Brass 2 or 3-Way Diverter Valve, 3/4 x 1/2 in, FNPT

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K737K
  • MPN: 737-K-NA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 x 1/2 in
Connection Type      :      FNPT
Flow Rate      :      1-Outlet: 18 gpm at 45 psi, 2-Outlet: 20.8 gpm at 45 psi
Height      :      3-5/8 in
Item Name      :      Diverter Valve
Material      :      Forged Brass
Number of Handles      :      1
Pressure Rating      :      80 psi
Temperature Rating      :      175 deg F
Theme/Style      :      MasterShower
Type      :      2 or 3-Way
Width      :      3-3/8 in

The MasterShower diverter valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its 3-way design allows control of up to three separate components and can also easily be configured as a 2-way diverter valve.

  • Diverts water flow to up to 3-separate components/outlets
  • Components/outlets can only be operated individually
  • Supplied as a 3-way diverter valve (360 deg handle rotation) but can be configured onsite for 2-way operation (120 deg handle rotation)
  • 1-handle operation
  • Using 1 outlet - 18 gpm flow rate at 45 psi, using 2 outlets - 20.8 gpm at 45 psi
  • Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
  • Limited lifetime warranty

Standards/Certifications: ASME A112.18.1, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18253_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18258_Spec.pdf
