Milwaukee Valve 1570CB2SCY040

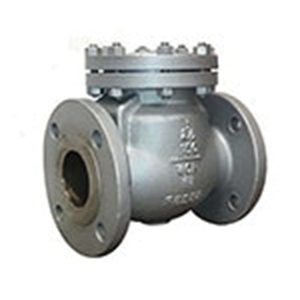

1570CB2 Class 150 Cast Steel Horizontal Swing Check Valve, 4 in, Flanged

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MV1570CB2SCS.4
  • MPN: 1570CB2SCY040
  • UPC: 697988671416
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      4 in
Connection Type      :      Flanged
Dimension      :      11-1/2 in L
Item Name      :      Swing Check Valve
Material Specifications      :      ASTM A216 Grade WCB, ASTM A105, ASTM A276 420, ASTM A193 B7, ASTM A194 2H
Material      :      Cast Steel
Model      :      1570CB2
Pressure Class      :      Class 150
Temperature Rating      :      -20 to 800 deg F
Type      :      Horizontal
  • WCB standard trim 13 CR/HF facing
  • Class 150
  • Raised face pipe end
  • Standard trim 13CR to hard facing (API Trim #8)

Standards/Certifications: ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25, API 598 tested
