Kohler K-8304-KS-NA

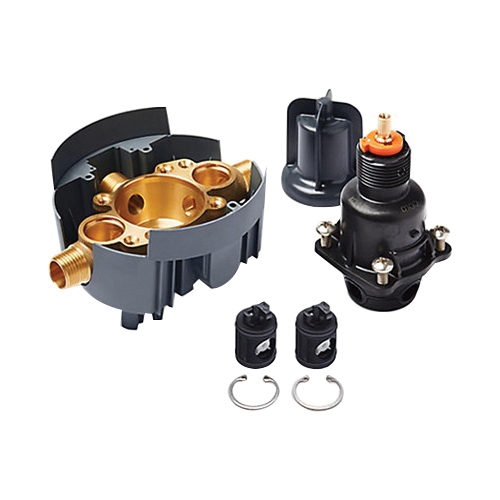

Rite-Temp Brass Pressure-Balancing Valve Body and Cartridge Kit with Service Stops, 1/2 in, NPT

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K8304KS
  • MPN: K-8304-KS-NA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      NPT
Flow Rate      :      5 gpm at 45 psi
Handle Type      :      Lever
Height      :      3-1/2 in
Includes      :      Valve-Body, Pressure Balance Cartridge, Rough-In Guide and Mud Guard, Service Stops
Item Name      :      Pressure-Balancing Valve Body and Cartridge Kit with Service Stops
Length      :      5-7/8 in
Material      :      Brass
Number of Handles      :      1
Pressure Rating      :      20 - 150 psi
Sub Brand      :      Rite-Temp
Width      :      5-7/8 in

The new Kohler Rite-Temp valve system sets new standards for ease of installation, application versatility and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from Kohler's comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

  • 1/2 in universal NPT and direct sweat inlets and outlets, with stops
  • Service stops include integral check valves
  • 5 gpm maximum flow rate at 45 psi
  • 1-lever design cycles from off through cold to hot
  • Provides temperature regulation and automatic anti-scald protection
  • 1-piece cartridge design simplifies installation and maintenance
  • Adjustable high temperature limit stop to control maximum water temperature
  • Requires valve trim
  • Pressure balancing diaphragm technology maintains outlet temperature within plus/minus 3 deg F during water pressure fluctuations
  • Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Standards/Certifications: ASME A112.18.1, A112.1016, ASSE 1016, CSA B125.1, B125.16
