Kohler K-8305-NA
Send Print
  1. pin-int

Kohler K-8305-NA

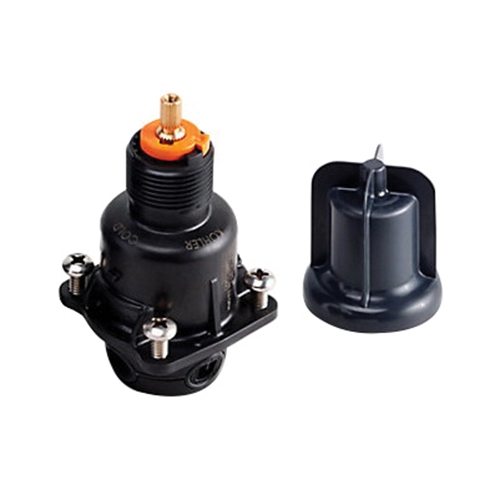

Rite-Temp Pressure-Balancing Cartridge

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K8305
  • MPN: K-8305-NA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Flow Rate      :      5 gpm
Includes      :      Pressure Balance Cartridge and Mud Guard
Item Name      :      Pressure-Balancing Cartridge
Length      :      4-11/16 in
Sub Brand      :      Rite-Temp
Width      :      2-1/2 in

The new Kohler Rite-Temp valve system sets new standards for ease of installation, application versatility and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades.

  • 5 gpm maximum flow rate at 45 psi
  • 1-lever design cycles from off through cold to hot
  • Provides temperature regulation and automatic anti-scald protection
  • 1-piece cartridge design simplifies installation and maintenance
  • Adjustable high temperature limit stop to control maximum water temperature
  • Requires valve body and trim to complete installation
  • Pressure balancing diaphragm technology maintains outlet temperature within plus/minus 3 deg F during water pressure fluctuations
  • Lifetime limited warranty

Standards/Certifications: ASME A112.1016, ASSE 1016, CSA B125.16

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18294_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18297_Spec.pdf
