Moen T2133ORB

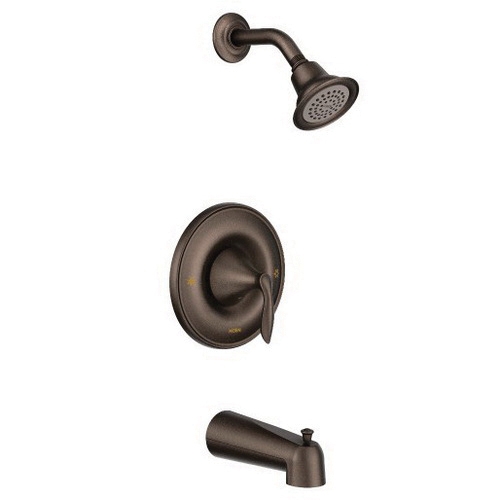

Posi-Temp Eva T2133 Metal 1-Handle Tub/Shower Trim, Oil Rubbed Bronze, 2.5 gpm at 80 psi

  • Manufacturers: MOEN
  • Brand Name: Moen
  • PN: MOT2133ORB
  • MPN: T2133ORB
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Cartridge Type      :      Standard
Escutcheon Size      :      7 in
Faucet Connection Type      :      Slip Fit
Faucet Mount      :      Wall
Finish      :      Oil-Rubbed Bronze
Flow Rate      :      2.5 gpm at 80 psi
Handle Material      :      Metal
Handle Type      :      Lever
Includes      :      Showerhead, Arm, Flange and Diverter Spout
Item Name      :      Tub/Shower Trim
Material      :      Metal
Model      :      T2133
Number of Handles      :      1
Shower Head Function      :      1-Function
Shower Head Shape      :      Round
Shower Head Size      :      3-1/2 in
Spout Reach      :      7 in
Spout Type      :      Diverter
Spray Pattern      :      Full
Sub Brand      :      Posi-Temp
Theme/Style      :      Eva
Valve Type      :      Pressure Balance

With flowing curves, the Eva collection's transitional design is pure and organic. Petal-like handles and swan-like spout bring a relaxed feeling to the bath.

  • Oil rubbed bronze finish incorporates the warmth of bronze with tumbled light and dark accents, creating an antiqued look
  • Lever handle makes it easy-to-adjust the water
  • Install with Posi-Temp Pressure balancing control valve to maintain water temperature control in the shower
  • Built-on the Moen M-PACT common valve system, allowing you to update the faucet-style in the future without replacing any plumbing
  • Handle operates counterclockwise through a 270 deg arc with off at 6 o'clock and maximum hot at the 9 o'clock position, shut-off in clockwise direction
  • Adjustable temperature limit stop to control maximum hot water temperature
  • Pressure balancing mechanism maintains selected discharge temperature to plus/minus 3 deg F
  • 1222 cartridge design
  • Non-metallic/non-ferrous and stainless steel materials
  • Accommodates back to back installations
  • Standard showerhead
  • Limited lifetime warranty

Standards/Certifications: ADA compliant, ASME A112.18.1, CSA B125.1
