Moen T3003EP
Send Print
  1. pin-int

Moen T3003EP

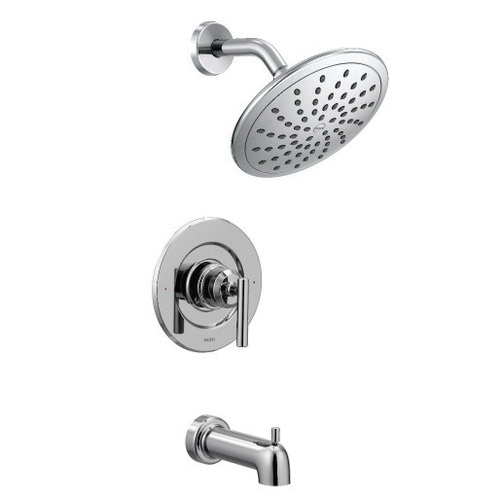

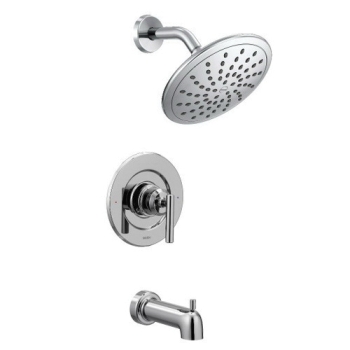

Posi-Temp Gibson Metal 1-Handle Tub/Shower Trim, Chrome, 1.75 gpm

  • Manufacturers: MOEN
  • Brand Name: Moen
  • PN: MOT3003EP
  • MPN: T3003EP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Cartridge Type      :      Standard
Escutcheon Size      :      7 in
Faucet Connection Type      :      Slip Fit
Faucet Mount      :      Wall
Finish      :      Chrome
Flow Rate      :      1.75 gpm
Handle Material      :      Metal
Handle Type      :      Lever
Includes      :      Showerhead, Arm, Flange
Item Name      :      Tub/Shower Trim
Material      :      Metal
Number of Handles      :      1
Shower Head Function      :      1-Function
Shower Head Shape      :      Round
Shower Head Size      :      8 in
Spout Reach      :      6-1/2 in
Spout Type      :      Diverter
Spray Pattern      :      Full
Sub Brand      :      Posi-Temp
Theme/Style      :      Gibson
Valve Type      :      Pressure Balance Cycle

The Gibson collection gives contemporary industrial design a softer point of view. The tubular spout and handles mirror the look of exposed piping while polished edges to create a chic and modern style.

  • Chrome finish is highly reflective for a mirror-like look that works with any decorating-style
  • Lever handle makes it easy-to-adjust the water
  • Install with Posi-Temp Pressure balancing control valve to maintain water temperature control in the shower
  • Built-on the Moen M-PACT common valve system, allowing you to update the faucet-style in the future without replacing any plumbing
  • Generously sized 8 in Dia this eco performance showerhead conserves water without sacrificing performance
  • Pressure balancing mechanism maintains selected discharge temperature to plus/minus 3 deg F
  • Handle operates counterclockwise through a 270 deg arc with off at 6 o'clock and maximum hot at the 9 o'clock position, shut-off in clockwise direction
  • Adjustable temperature limit stop to control maximum hot water temperature
  • 1222 cartridge design
  • Non-metallic/non-ferrous and stainless steel materials
  • Accommodates back to back installations
  • Includes red and blue markings
  • Limited lifetime warranty

Standards/Certifications: ADA compliant, ASME A112.18.1, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20126_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20126_Spec.pdf
