Precision Plumbing Products MPB-500-115V

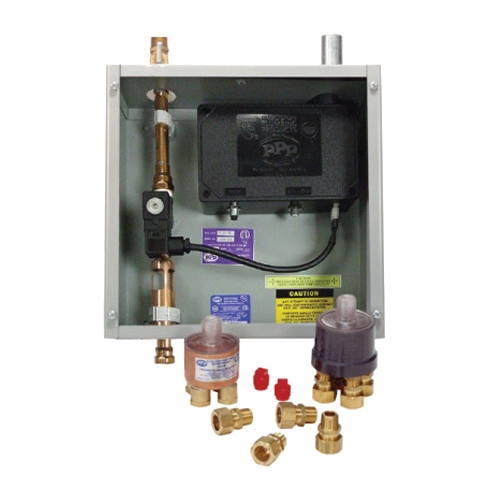

Mini-Prime Powder Paint Gray Polyester 115 V Electronic Trap Primer with Box, 1/2 in, MNPT x FNPT

  • Manufacturers: Precision Plumbing Products
  • Brand Name: Precision Plumbing Products
  • PN: MPB-500
  • MPN: MPB-500-115V
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      MNPT x FNPT
Finish      :      Gray Powder-Painted
Height      :      4 in
Includes      :      2 A Circuit Breaker, Test Switch, Timer, Solenoid Valve
Item Name      :      115 V Electronic Trap Primer with Box
Length      :      12 in
Material      :      Polyester
Nominal Size      :      1/2 in
Pressure Rating      :      20 - 150 psi
Sub Brand      :      Mini-Prime
Temperature Rating      :      32 - 125 deg F
Width      :      12 in

This unique trap priming assembly maintains a constant water seal in floor drain traps. It is designed for use with one to four floor drains.

  • 115 V
  • NEMA-type 1, UL 50 box

Standards/Certifications: ANSI/ASME B1.20.1, UL listed

Applications: For 1 - 4-floor drains
