Fiat Products MSB3624100

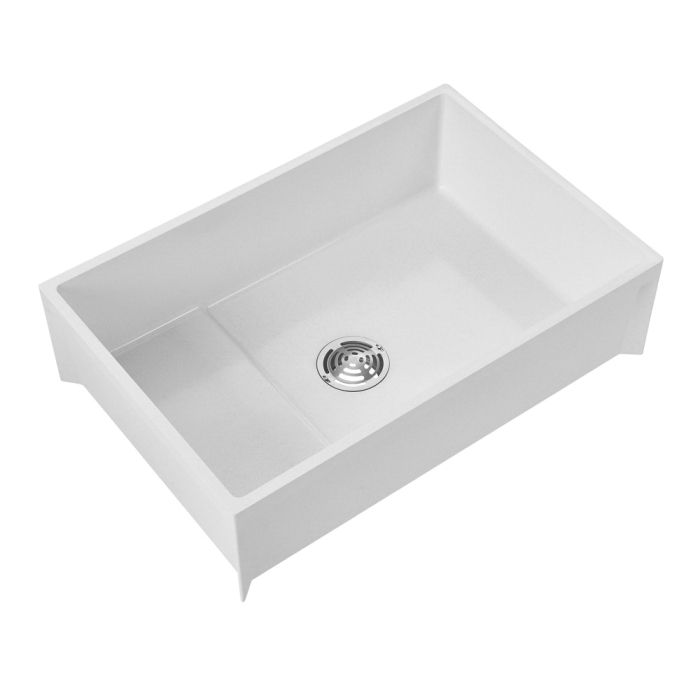

Molded Stone Single-Bowl Square Wall Mount Mop Basin, 36 in L x 24 in W x 10 in H, Center Drain, White

  • Manufacturers: Fiat Products
  • Brand Name: Fiat Products
  • PN: MSB3624
  • MPN: MSB3624100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Drain Location      :      Center
Drain Size      :      3 in
Finish      :      White
Height      :      10 in
Includes      :      Quick Drain Connector, Integral Stainless Steel Drain Assembly and Strainer Plate
Item Name      :      Mop Basin
Length      :      36 in
Material      :      Molded Stone
Mounting      :      Wall
Number of Bowls      :      1
Shape      :      Square
Width      :      24 in

The MSB 3624 shall have overall outside dimensions of 36 x 24 x 10 in. The molding shall be done in matched metal dies under heat and pressure resulting in a 1-piece homogeneous product. The unit shall have 10 in high walls with not less than 1 in wide shoulders and an integrally molded shelf 10-9/16 in wide where indicated. The stainless steel drain body is designed to provide for a caulk connection or QDC-3 joint to a 3 in drain pipe. A combination dome strainer and lint basket made from stainless steel shall be included with factory-installed stainless steel drain body for caulked joint to accept a 3 in pipe.

  • Stainless Steel drain is designed to connect to a 3 in drain pipe
  • Plain curbs
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20269_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20269_Spec.pdf
