Milwaukee Valve UP1502 - 34

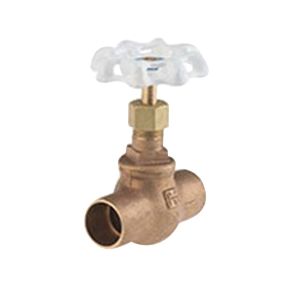

Ultra-Pure UP1502 Bronze Globe Valve, 3/4 in, Solder, Lead-Free

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MVUP1502.34
  • MPN: UP1502 - 34
  • UPC: 697988614222
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      Solder
Dimension      :      3.19 in L
Disc Material      :      Bronze
Flow Co-Efficient      :      6.7 Cv
Item Name      :      Globe Valve
Material Specifications      :      ASTM B584, C89833, ASTM B21, C46400, H02, B16, C30000
Material      :      Bronze
Model      :      UP1502
Operator Type      :      Malleable Iron Handwheel
Packaging Material      :      Graphite
Pressure Rating      :      300 psi WOG Non-Shock
Stem Material      :      Bronze
Sub Brand      :      Ultra-Pure
  • Lead-free
  • Bronze threaded bonnet
  • Brass disc ring, packing nut, handwheel nut and aluminum identification plate

Standards/Certifications: MSS SP-80, IAPMO R and T, ANSI/NSF 61 and 372 certified

Applications: For potable water

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20443_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20632_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20632_Spec.pdf
