Milwaukee Valve UP0667000014

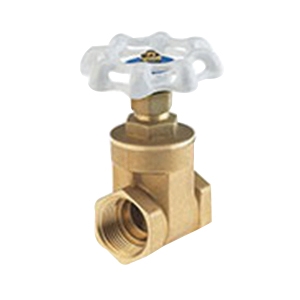

Ultra-Pure UP667 Forged Brass Non-Rising Stem Gate Valve, 1/4 in, Solder, Lead-Free

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MVUP667.14
  • MPN: UP0667000014
  • UPC: 084738288947
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      Solder
Dimension      :      1.63 in L
Flow Co-Efficient      :      5.6 Cv
Item Name      :      Gate Valve
Material Specifications      :      ASTM B16, C36000, ASTM A48, Class 35, ASTM B283, C27450
Material      :      Forged Brass
Model      :      UP667
Operator Type      :      Cast Iron Handwheel
Pressure Rating      :      200 psi WOG Non-Shock
Stem Material      :      Brass
Sub Brand      :      Ultra-Pure
Type      :      Non-Rising Stem
  • Lead-free
  • Brass handwheel nut, aluminum sheet nameplate, forged brass packing nut, wedge, brass rod gland and PTFE packing ring

Standards/Certifications: IAPMO R and T, ANSI/NSF 61 and 372 certified

Applications: For potable water

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20443_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20632_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20645_Spec.pdf
