Florestone MSR-2424
Send Print
  1. pin-int

Florestone MSR-2424

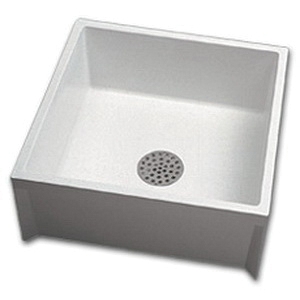

1-Piece Molded Mop Receptor, 24 in L x 24 in W x 11-1/4 in H

  • Manufacturers: Florestone
  • Brand Name: Florestone
  • PN: MSR2424
  • MPN: MSR-2424
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Drain Size      :      5-1/2 in
Height      :      11-1/4 in
Includes      :      Wedge-Lok Seal, Integral Drain and Chrome Strainer
Item Name      :      Molded Mop Receptor
Length      :      24 in
Type      :      1-Piece
Width      :      24 in

Furnish and install molded mop receptor model MSR-2424/MSR-3624 (specify) as manufactured by Florestone Products Co. molding will be done under heat and pressure using matched metal dies. The unit will be 1-piece with no seams. Shoulders will be no less than 1 in wide and 9-1/2 in inside. Receptor will have ribbed underbody and integral drain providing for a no-caulked connection to be 2 in or 3 in ABS, PVC, cast iron or steel pipe (specify drain size). Drain grid will be 18 ga stainless steel, flat type, #430.

Standards/Certifications: ANSI Z-124.6, UN-73 HUD/FHA, CAN/CSA B45.0, B45.5, No. 2646 IAPMO, UPC listed

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20283_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20283_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20283_Tech.pdf
