Dayton K233224

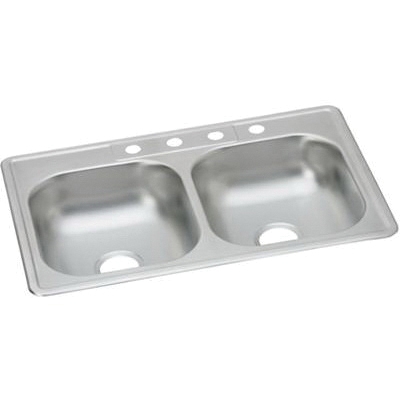

23 ga 300 Stainless Steel 4-Hole Equal Double-Bowl Rectangular Drop-In Sink, 33 in L x 22 in W x 6-1/16 in H, Center Drain, Satin

  • Manufacturers: Elkay
  • Brand Name: Dayton
  • PN: .K-23322-4H
  • MPN: K233224
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Cutout Size      :      32-3/8 x 21-3/8 in
Drain Location      :      Center
Drain Size      :      3-1/2 in
Faucet Center Size      :      8 in
Faucet Hole Size      :      1-1/2 in
Finish      :      Satin
Gauge      :      23 ga
Height      :      6-1/16 in
Includes      :      64090012 Mounting Hardware
Item Name      :      Sink
Length      :      33 in
Material      :      300 Stainless Steel
Minimum Cabinet Size      :      36 in
Mounting      :      Drop-In
Number of Bowls      :      2
Number of Holes      :      4
Shape      :      Rectangle
Sink Bowl Size (Right)      :      14 in L x 15-3/4 in W x 5-7/8 in H
Sink Bowl Size (Single or Left)      :      14 in L x 15-3/4 in W x 5-7/8 in H
Sound Dampening      :      Yes
Type      :      Equal Double Bowl
Width      :      22 in

Dayton offers a complete line of stainless steel sinks along with drains and accessories. From drop-in installation to undermount and dual mount styles Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.

  • Product is ADA complaint when properly installed
  • Sink is designed for drop-in installation to make the sink a focal point of your room
  • Double bowls of equal size - conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks
  • 300 series stainless steel designed for everyday use
  • Quiet - sound deadening pads minimize sound and vibration for a quieter time at the sink
  • U-channel installation - mounting clips placed inside the channel before installation mean less time under the sink for an easier install
  • Sink drain opening measures 3-1/2 in
  • Limited lifetime warranty
  • Made in USA

Standards/Certifications: ADA compliant, ASME A112.19.3, BAA compliant, CSA B45.4, cUPC listed, ICC A117.1, IPC/NPC of Canada

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14748_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14469_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17780_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17780_Tech.pdf
