Napco G1306-4

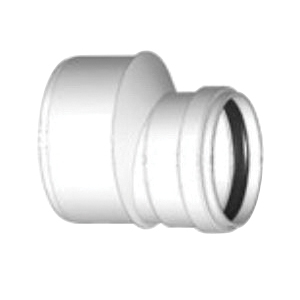

G-Series PVC SDR35 Sewer Eccentric Increaser Bushing, 6 x 4 in, Spigot x Gasket

  • Manufacturers: Napco Pipe and Fittings
  • Brand Name: Napco
  • PN: M43237
  • MPN: G1306-4
  • UPC: 0089938005943
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      6 x 4 in
Connection Type      :      Spigot x Gasket
Item Name      :      Gasketed SDR35 Sewer Eccentric Increaser Bushing
Length      :      7.25 in
Material Specifications      :      ASTM D2665, ASTM D3034, ASTM F2135
Material      :      PVC
Method of Manufacturer      :      Injection Molded
Series      :      G

The G-series sewer fitting line is a fully-integrated SDR 35 fitting design using reinforced branches and intersections to enhance the structural integrity of the installation and provide long-lasting performance. Used for non-pressure drainage of sewer and surface water. Our gasketed sewer pipe has a specially designed double seal locked-in rieber gasket that provides a leak-proof joint on extremely durable pipe.

Standards/Certifications: NSF 14 certified, UPC listed, CSA B181.2

Applications: For non-pressure drainage of sewer and surface water

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6946_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16373_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19377_Tech.pdf
