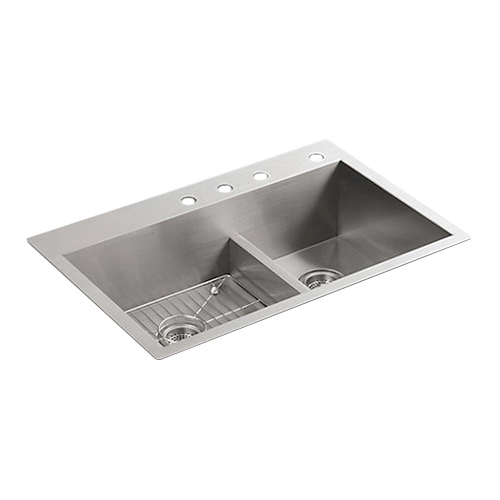

Kohler K-3839-4-NA

Vault 18 ga Stainless Steel 4-Hole Double-Bowl Offset Large/Medium Rectangular Top/Undermount Kitchen Sink, 33 in L x 22 in W x 9-5/16 in H

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K38394
  • MPN: K-3839-4-NA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Drain Size      :      3-5/8 in
Faucet Center Size      :      4 in
Faucet Hole Size      :      1-7/16 in
Gauge      :      18 ga
Height      :      9-5/16 in
Includes      :      1130570 Hardware Kit, Self-Rimming, K-6646 Left-Bowl Sink Rack
Item Name      :      Kitchen Sink
Length      :      33 in
Material      :      Stainless Steel
Minimum Cabinet Size      :      36 in
Mounting      :      Top/Undermount
Number of Bowls      :      2
Number of Holes      :      4
Shape      :      Rectangle
Sink Bowl Size (Right)      :      11-5/8 in L x 16-9/16 in W x 9 in D
Sink Bowl Size (Single or Left)      :      17-1/2 in L x 16-9/16 in W x 9 in D
Sound Dampening      :      Yes
Sub Brand      :      Vault
Type      :      Offset, Large/Medium
Water Depth Size      :      4-11/16 in
Width      :      22 in

The distinctive, modern design of the Vault dual-mount sink lends a contemporary vibe to your kitchen. Handcrafted from stainless steel, this sink features tightly angled corners to maximize basin space and lowered divider for freedom of movement between basins. When installed as a top-mount sink, Vault offers a low-profile rim that makes it easier to wipe from the countertop directly into the bowl. An included bottom sink rack fits the large bowl and helps prevent scratches.

  • Three faucet holes with 1-accessory hole to the right
  • Smart divide features a low dividing barrier that increases workspace and versatility
  • SilentShield sound absorption technology offers quieter performance
  • Handcrafted from 18 ga stainless steel
  • Lifetime limited warranty

Standards/Certifications: ASME A112.19.3, CSA B45.4

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17896_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17909_Spec.pdf
