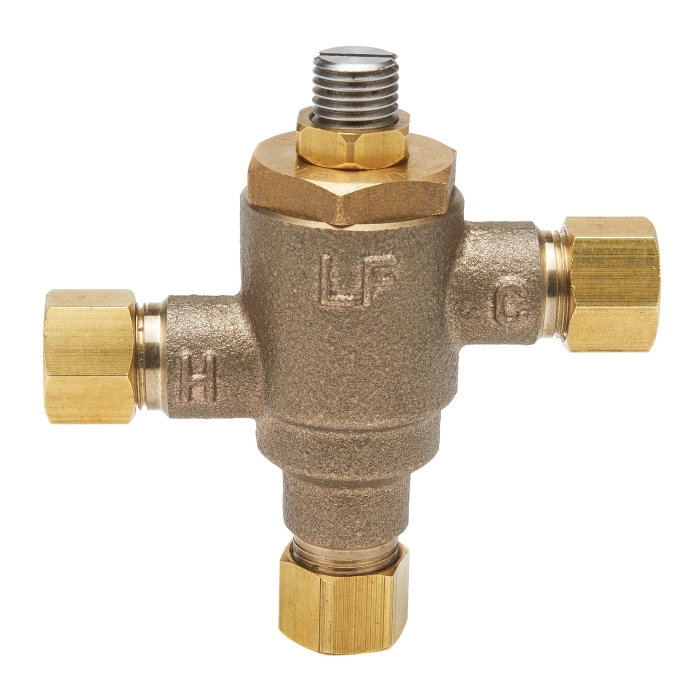

Leonard 170A-LF

Eco-Mix Bronze Exposed Point of Use Thermostatic Mixing Valve, 3/8 in, Compression, Lead-Free, 0.25 - 4 gpm

  • Manufacturers: Leonard
  • Brand Name: Leonard
  • PN: LE170A-LF
  • MPN: 170A-LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/8 in
Connection Type      :      Compression
Flow Rate      :      0.25 - 4 gpm
Height      :      3-1/4 in
Item Name      :      Thermostatic Mixing Valve
Length      :      3-1/4 in
Material      :      Bronze
Pressure Rating      :      125 psi
Sub Brand      :      Eco-Mix
Temperature Rating      :      95 - 120 deg F
Type      :      Exposed, Point of Use

The Model 170A-LF is a high performance temperature limiting device used to supply single outlets. Can be used to supply (1) sensor faucet or (1) 2-handle manual faucet.

  • Eco-Mix certified lead-free construction
  • Integral inlet checks and stainless steel screens
  • Vandal-resistant locknut to prevent accidental adjustment
  • Easy 3/8 in tubing or flex hose installation
  • 180 deg F maximum hot water temperature
  • 120 - 180 deg F hot water inlet temperature
  • 33 - 80 deg F cold water inlet temperature
  • Lead-free

Standards/Certifications: ASSE 1070, cCSAus certified, cUPC listed, ANSI/NSF 61 certified
