Leonard 170-LF

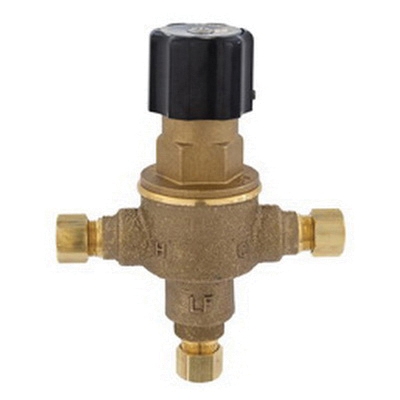

Eco-Mix Bronze Exposed Point of Use Thermostatic Mixing Valve, 3/8 in, Compression, Lead-Free, 0.25 - 5 gpm

  • Manufacturers: Leonard
  • Brand Name: Leonard
  • PN: LE170LF
  • MPN: 170-LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/8 in
Connection Type      :      Compression
Flow Rate      :      0.25 - 5 gpm
Height      :      5 in
Item Name      :      Thermostatic Mixing Valve
Length      :      4 in
Material      :      Bronze
Pressure Rating      :      125 psi
Sub Brand      :      Eco-Mix
Temperature Rating      :      90 - 140 deg F
Type      :      Exposed, Point of Use
  • Lead-free
  • Locked temperature adjustment cap (vandal-resistant)
  • Copper encapsulated thermostat assembly with polymer thermoplastic shuttle
  • Stainless steel springs
  • Integral check valves on hot and cold inlets
  • Compression fittings on inlets and outlet
  • 200 deg F maximum hot water temperature
  • Approach temperature 5 deg F above set-point

Standards/Certifications: ASSE 1070, cCSAus certified, cUPC listed, ANSI/NSF 61 certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3459_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3459_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3459_Spec.pdf
