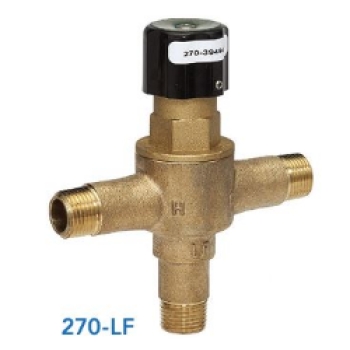

Leonard 270-LF

Lead Free Thermostatic Point of Use Mixing Valve 1/2in MIPS

  • Manufacturers: Leonard
  • Brand Name: Leonard
  • PN: LE270LF
  • MPN: 270-LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      Copper Tube
Flow Rate      :      0.25 - 12 gpm
Item Name      :      Complete Water Temperature Control Station
Material      :      Bronze
Pressure Rating      :      125 psi
Sub Brand      :      Eco-Mix, Megatron
Temperature Rating      :      90 - 140 deg F
Type      :      Wax
  • Minimum Flow: 0.25 GPM (0.95 l/Min)*
  • Maximum Pressure: 125 PSI (8.6 BAR)
  • Maximum Hot Water temperature: 200F- (93°C)
  • Approach Temperature 5°F (2.8°C) above set point.
  • Temperature adjustment range, 90-140ºF (32-60ºC) Minimum Flow: 0.25 GPM (0.95 l/Min)
  • Maximum Pressure: 125 PSI (8.6 BAR)
  • Maximum Hot Water temperature: 200F- (93°C)
  • Approach Temperature 5°F (2.8°C) above set point.
  • Temperature adjustment range, 90-140ºF (32-60ºC)

* 0.25 GPM minimum flow certified to ASSE 1070* 0.25 GPM minimum flow certified to ASSE 1070
