Leonard LV-981A-LF-RF

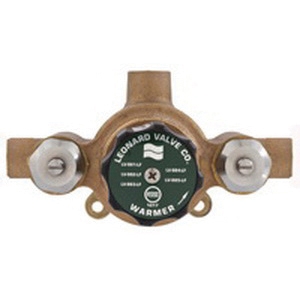

Eco-Mix Rough Bronze Wax Thermostatic Mixing Valve, 3/4 in, Sweat, Lead-Free

  • Manufacturers: Leonard
  • Brand Name: Leonard
  • PN: LELV981ALFRF
  • MPN: LV-981A-LF-RF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      Sweat
Finish      :      Rough Bronze
Flow Rate      :      2.5 - 44 gpm
Handle Type      :      Locking
Item Name      :      Thermostatic Mixing Valve
Length      :      7-1/2 in
Material      :      Bronze
Pressure Rating      :      125 psi
Sub Brand      :      Eco-Mix
Temperature Rating      :      90 - 140 deg F
Type      :      Wax
Width      :      6 in
  • Integral combination checkstops with strainers
  • Copper encapsulated thermostatic assembly with Teflon coated brass shuttle, locking temperature regulating handle, top or bottom supply/outlet connections, internal parts of bronze, brass and stainless steel, Integral wall support for easy mounting
  • Lead-free

Standards/Certifications: ASSE 1017

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18960_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18960_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18960_Spec.pdf
