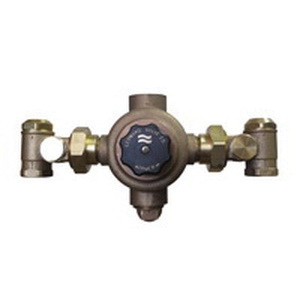

Leonard LV-982-LF-RF

Eco-Mix Rough Bronze Wax Thermostatic Water Mixing Valve, 1 x 1-1/4 in, NPT, Lead-Free

  • Manufacturers: Leonard
  • Brand Name: Leonard
  • PN: LELV982RFLF
  • MPN: LV-982-LF-RF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 x 1-1/4 in
Connection Type      :      NPT
Finish      :      Rough Bronze
Flow Rate      :      3 - 60 gpm
Handle Type      :      Locking
Height      :      7 in
Item Name      :      Thermostatic Water Mixing Valve
Length      :      13-1/2 in
Material      :      Bronze
Pressure Rating      :      125 psi
Sub Brand      :      Eco-Mix
Temperature Rating      :      90 - 140 deg F
Type      :      Wax
Width      :      7 in
  • Integral combination checkstops with strainers
  • Copper encapsulated thermostatic assembly with Teflon coated stainless steel shuttle, locking temperature regulating handle, internal parts stainless steel, integral wall support for easy mounting
  • Lead-free

Standards/Certifications: ASSE 1017

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18960_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18961_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18961_Spec.pdf
