Oatey 38535

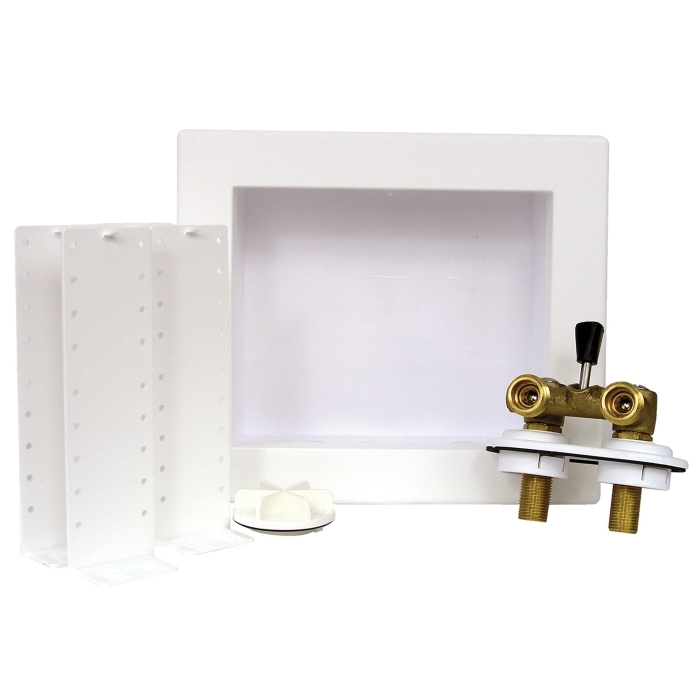

Quadtro Polystyrene Washing Machine Outlet Box with Single Lever Ball Valve, Copper Sweat

  • Manufacturers: Oatey
  • Brand Name: Oatey
  • PN: OA38535
  • MPN: 38535
  • UPC: 038753385358
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      Copper Sweat
Height      :      10.19 in
Includes      :      Single Lever Ball Valve, (4) Support Bracket
Item Name      :      Washing Machine Outlet Box
Length      :      11.73 in
Material      :      Polystyrene
Mounting      :      Top/Bottom
Sub Brand      :      Quadtro

Oatey Quadtro washing machine outlet boxes are available for commercial and residential applications that require supply valves and waste drain recessed into the wall.

  • 2 in drain opening fits PVC or ABS SCH 40 DWV pipe
  • Easy-to-remove knockout
  • Snap-on faceplate frame accommodates up to 1 in drywall
  • Box made of high-impact polystyrene
  • Top or bottom valve mount
  • (4) support brackets included for mounting

Standards/Certifications: ASME A112.18.1, CSA B125.1, IAPMO listed, ANSI/NSF 61 and 372 certified

Applications: For commercial and residential applications
