Oatey 38981

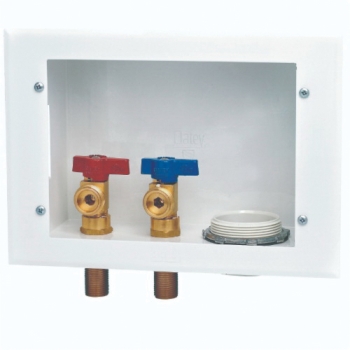

Steel Reversible Drain Washing Machine Outlet Box, Copper Sweat

  • Manufacturers: Oatey
  • Brand Name: Oatey
  • PN: OA38981
  • MPN: 38981
  • UPC: 038753389813
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      Copper Sweat
Height      :      7-3/4 in
Includes      :      1/4-Turn Brass Ball Valve, (2) Support Bracket
Item Name      :      Washing Machine Outlet Box
Length      :      10.88 in
Material      :      Steel
Type      :      Reversible Drain
Width      :      3.69 in

Oatey reversible drain metal washing machine outlet boxes can be used in commercial or residential applications which require supply valves and waste drain recessed into the wall. Available water hammer arrestor option provides water pressure shock arrestors required on supply lines to quick closing valves.

  • Allows left or right-hand drain
  • (2) metal support brackets
  • 2 in drain opening
  • Box made of 20 ga steel

Standards/Certifications: ASME A112.18.1, CSA B125.1, PS-54, IAPMO listed

Applications: For commercial and residential applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13438_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS21193_Spec.pdf
