Elkay LR19182

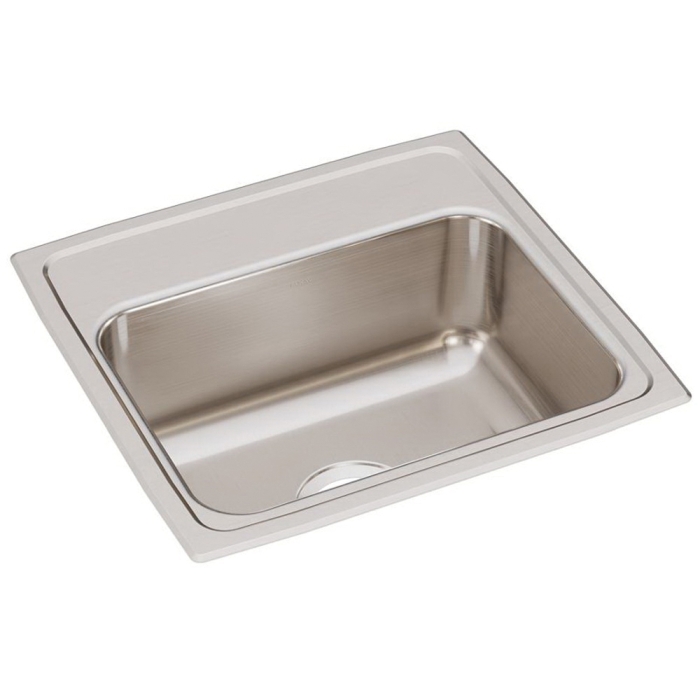

Lustertone Classic 18 ga 304 Stainless Steel 2-Hole Single-Bowl Rectangular Drop-In Sink, 19 in L x 18 in W x 7-5/8 in H, Center Drain, Lustrous Satin

  • Manufacturers: Elkay
  • Brand Name: Elkay
  • PN: LR19182
  • MPN: LR19182
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Drain Location      :      Center
Drain Size      :      3-1/2 in
Faucet Center Size      :      4 in
Finish      :      Lustrous Satin
Gauge      :      18 ga
Height      :      7-5/8 in
Includes      :      1000001260 Cut-Out Template
Item Name      :      Sink
Length      :      19 in
Material      :      304 Stainless Steel
Minimum Cabinet Size      :      24 in
Mounting      :      Drop-In
Number of Bowls      :      1
Number of Holes      :      2
Shape      :      Rectangle
Sink Bowl Size (Single or Left)      :      16 in L x 11-1/2 in W x 7-1/2 in H
Sound Dampening      :      Yes
Theme/Style      :      Lustertone Classic
Width      :      18 in

An Elkay Lustertone Classic stainless steel sink looks as great on day 3000 as it does on day one. The rich uniform grain is scratch-resistant for heavy-duty use whether it's a kitchen sink or a prep bar laundry or commercial sink. Light scratches which occur with everyday use naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit.

  • Repairable finish is scratch-resistant to heavy-duty use
  • Repairable finish deep scratches are repairable
  • Repairable finish lustrous grain reflects light evenly for high shine
  • Sink is designed for drop-in installation to make the sink a focal point of your room
  • 1-bowl gives you uninterrupted space for washing and stacking dishes or other household tasks
  • Stainless steel highest quality 18 ga thickness and type 304 stainless steel for lasting durability, performance and lustrous beauty
  • Quiet - sound deadening pads minimize sound and vibration for a quieter time at the sink
  • U-channel installation - mounting clips placed inside the channel before installation mean less time under the sink for an easier install
  • Large capacity straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes
  • Made in USA
  • Lifetime limited warranty

Standards/Certifications: ASME A112.19.3, CSA B45.4, BAA compliant, IAPMO, cUPC listed, IPC/NPC of Canada

Applications: For commercial

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14014_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19179_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19179_Tech.pdf
