Zurn QQE66GX
Send Print
  1. pin-int

Zurn QQE66GX

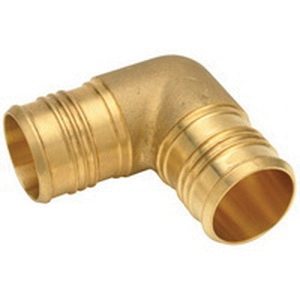

ZurnPEX Brass Large Diameter 90 deg Elbow, 1-1/4 in, PEX Barb, Lead-Free

  • Manufacturers: Zurn Industries
  • Brand Name: Zurn
  • PN: QQE66GX
  • MPN: QQE66GX
  • UPC: 084169014771
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      1-1/4 in
Connection Type      :      PEX Barb
Item Name      :      Elbow
Material Specifications      :      ASTM F1807, ASTM F877
Material      :      Brass
Pressure Rating      :      160 psi
Sub Brand      :      ZurnPEX
Temperature Rating      :      73 deg F
Type      :      Large Diameter

Standards/Certifications: ANSI/NSF 14 and 61 annex G certified, CSA B137.5

Applications: For PEX hot and cold water plumbing applications

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22466_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22444_Spec.pdf
