PSC Approved Manufacturer FIG 200H-2-1/2 PGL

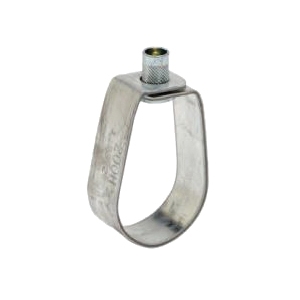

Tolco 200H Pre-Galvanized Steel Heavy-Duty Band Hanger with 3/8 in Tap, 2-1/2 in

  • Manufacturers: PSC Approved Manufacturer
  • Brand Name: PSC Approved Manufacturer
  • PN: TOLCO200H.212.38
  • MPN: FIG 200H-2-1/2 PGL
  • UPC: 78205170698
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Finish      :      Pre-Galvanized
Item Name      :      Band Hanger with 3/8 in Tap
Length      :      5-5/16 in
Load Capacity      :      1200 lb
Material      :      Steel
Model      :      200H
Nominal Size      :      2-1/2 in
Rod Size      :      3/8-16 in
Sub Brand      :      Tolco
Temperature Rating      :      650 deg F
Type      :      Heavy-Duty
  • Designed primarily to support substantially heavier loads than is normally intended for the nominal hanger size
  • Used extensively to support trapeze installations and the increased loads from both above and below the trapeze assembly
  • Furnished with 3/8-16 or 1/2-13 adjusting threaded ring nut

Standards/Certifications: Federal specification WW-H-171E and A-A-1192A (type 10) and ANSI/MSS SP-69 and SP-58 (type 10) certified, cULus listed

Applications: For trapeze
