B-Line FIG 909-1-1/2 HL-EG

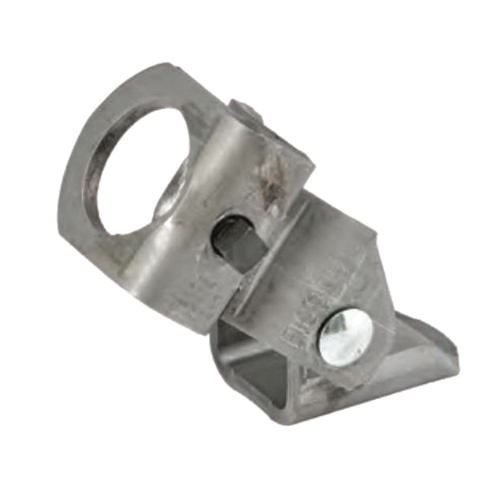

Tolco 909 Electrogalvanized Steel No-Thread Swivel Sway Brace Attachment, 1/2 x 1 in

  • Manufacturers: Cooper Industries
  • Brand Name: B-Line
  • PN: TOLCO909.1
  • MPN: FIG 909-1-1/2 HL-EG
  • UPC: 78205171839
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      6 in L x 1-5/8 in W
Finish      :      Electrogalvanized
Item Name      :      Swivel Sway Brace Attachment
Load Capacity      :      2015 lb
Material      :      Steel
Model      :      909
Nominal Size      :      1/2 x 1 in
Sub Brand      :      Tolco
Type      :      No-Thread
  • This products design incorporates a concentric attachment opening which is critical to the performance of structural seismic connections
  • NFPA 13 indicates clearly that fastener table load values are based only on concentric loading
  • No threading of the bracing pipe is required, open design allows for easy inspection of pipe engagement

Standards/Certifications: cULus listed, OSHPD approved

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS15751_Cat.pdf
