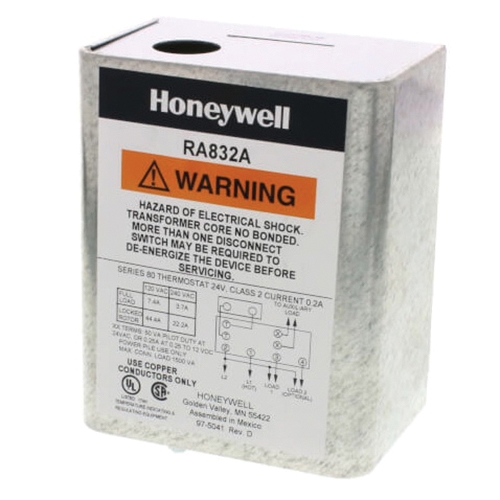

Honeywell RA832A1066/U

2-Zone Switching Relay with Internal Transformer, 120 V, 7.4 A, DPST

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: RA832A-1066
  • MPN: RA832A1066/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      7.4 A
Contact Configuration      :      DPST
Dimension      :      4-1/4 in W x 5-1/4 in H x 2-15/16 in D
Item Name      :      Switching Relay with Internal Transformer
Type      :      2-Zone
Voltage Rating      :      120 V
  • Integral transformer provides low voltage power for control circuit
  • The RA832A is a TPST relay
  • 1-relay pole is designed for low voltage or millivoltage (PowerPile) auxiliary load
  • Other relay poles are for line voltage loads
  • Provide intermediate switching of a line voltage device from a low voltage controller
  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22645_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22645_Instal.pdf
