Domestic Manufacturer 0300200805

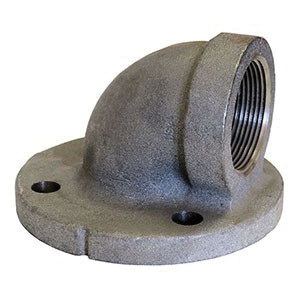

371 STD Black Cast Iron 90 deg Elbow, 4 in, Flanged x FNPT, Domestic

  • Manufacturers: Domestic Manufacturer
  • Brand Name: Domestic Manufacturer
  • PN: SPEL4
  • MPN: 0300200805
  • UPC: 690291016684
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      4 in
Connection Type      :      Flanged x FNPT
Finish      :      Black
Item Name      :      Elbow
Material Specifications      :      ASTM A126 (A)
Material      :      Cast Iron
Model      :      371
Pressure Class      :      Class 125
Pressure Rating      :      175 psi
Schedule      :      STD
Temperature Rating      :      -20 to 150 deg F

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471).

Standards/Certifications: ASME B16.4, ASME B1.20.1, cULus listed, FM approved
