SharkBite UIP140
Send Print
  1. pin-int

SharkBite UIP140

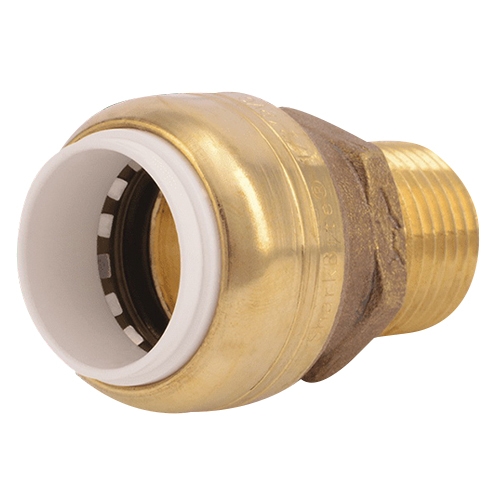

Natural DZR Brass Adapter, 1 in, Push-to-Connect x MNPT, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: UIP140
  • MPN: UIP140
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in CTS
Connection Type      :      Push-to-Connect x MNPT
Finish      :      Natural
Item Name      :      Adapter
Length      :      2.4 in
Material      :      DZR Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F

Innovative push-to-connect design makes for quick and easy installation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

  • Lead-free
  • Compatible with SCH 40, 80 and 120 PVC pipe
  • No special tools or glue needed for installing
  • Can be installed in wet lines
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • Able to be removed if needed using PVC disconnect clip and depth gauge and disconnect clip
  • 25-years warranty

Standards/Certifications: ANSI/NSF 14, 61 and 372 certified, IAPMO listed

Applications: For used to transition between Schedule 40, 80 and 120 PVC pipe and MNPT threaded connection

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28620_Spec.pdf
