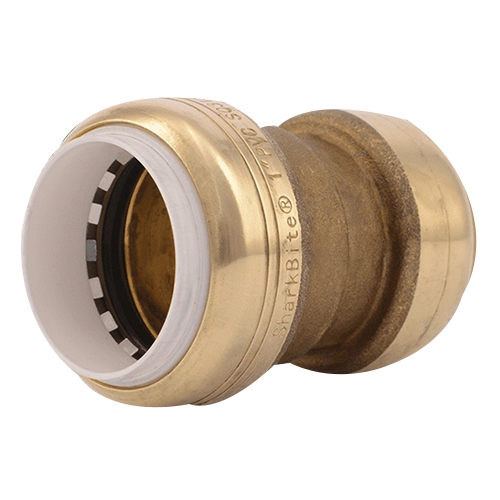

SharkBite UIP4020

Natural DZR Brass Transition Coupling, 1 in CTS, Push-to-Connect

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: UIP4020
  • MPN: UIP4020
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in CTS
Connection Type      :      Push-to-Connect
Finish      :      Natural
Item Name      :      Transition Coupling
Length      :      2.68 in
Material      :      DZR Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F

Fitting has color coordinated collars on each end to identify which side goes with which pipe - the white collar end is compatible with Schedule 40, 80 and 120 PVC pipe and the tan collar end is compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.

  • Innovative push-to-connect design makes for quick and easy installation
  • No special tools, crimping, glue or soldering is needed
  • Can be installed in wet lines
  • Remove if needed using disconnect clip (sold separately)
  • 25-years warranty

Standards/Certifications: ANSI/NSF 14, 61 and 372 certified, IAPMO listed

Applications: For transition from Schedule 40, 80 or 120 PVC pipe to PEX, copper, CPVC, PE-RT or HDPE pipe

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28620_Spec.pdf
