T&S Brass B-1120-LN
Send Print
  1. pin-int

T&S Brass B-1120-LN

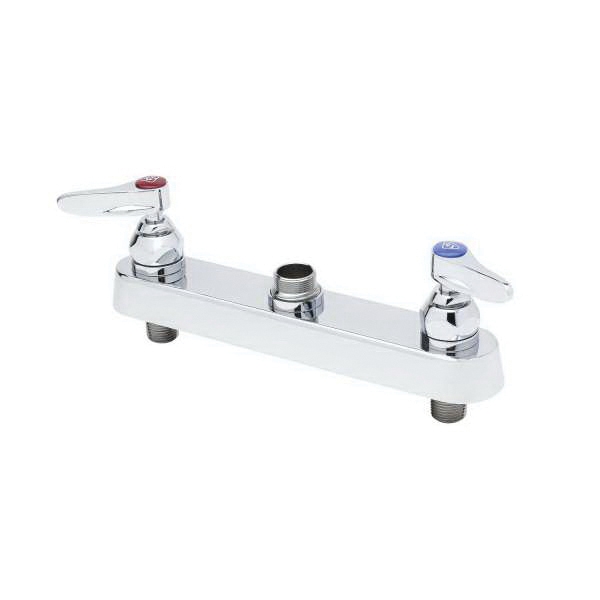

Brass 2-Handle Workboard Faucet, Chrome-Plated, 1.8 gpm, 8 in Centers

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: TSB1120LN
  • MPN: B-1120-LN
  • UPC: 671262009744
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Cartridge Type      :      1/4-Turn Compression
Deck Thickness      :      1 in
Faucet Center Size      :      8 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      MNPT
Faucet Mount      :      Deck
Finish      :      Chrome-Plated
Flow Rate      :      8.78 gpm at 60 psi
Handle Height      :      3-5/16 in
Handle Material      :      Metal
Handle Type      :      Lever
Height      :      3-5/16 in
Item Name      :      Workboard Faucet
Length      :      12-5/8 in
Material      :      Brass
Number of Handles      :      2
WaterSense Labelled      :      No
Width      :      2 in
  • 4 in deck mount mixing faucet with chrome-plated brass body
  • Swivel outlet accepts T&S swing nozzles
  • 1/4-turn Eterna compression cartridges with spring checks to prevent cross flow of water
  • Lever handle with color-coded indexes
  • 1/2 in NPT male inlets
  • Tailpieces and nuts for 1/4 in MNPT connections
  • Chrome-plated brass body and metal handles and escutcheon
  • Low lead content (0.25% maximum)
  • 20 - 125 psi operating pressure
  • 40 - 140 deg F temperature range
  • Less nozzle
  • 1-year warranty

Standards/Certifications: ADA, BAA/ARRA compliant, ANSI A117.1, ASME A112.18.1,CSA B125.1, NSF 61-9 and 372 certified

  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28333_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28333_Tech.pdf
